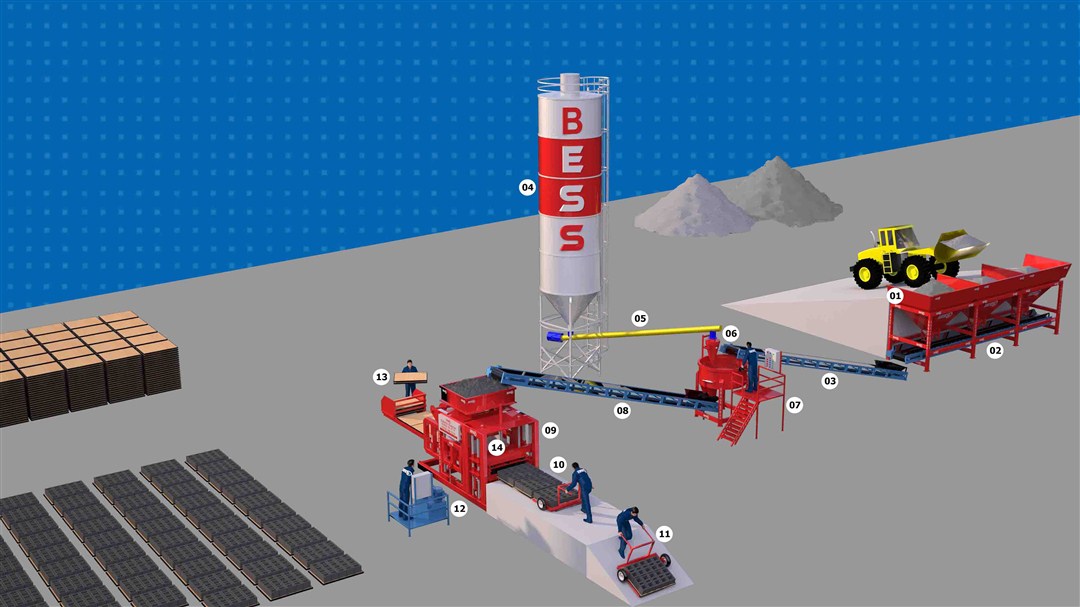

PRS 800 SEMI-AUTOMATIC MACHINE:Semi-automatic system is made like a mortar plant. The semi-automatic concrete block machine is designed to work 24 hours. We also have different automation levels and capacities. Machine is very fast and has high production capacity. By changing the mould, the machine can produce different types of hollow blocks, solid blocks, paving blocks, styrofoam concrete blocks,insulated bricks, curbstones, and chimney blocks. the height of the blocks must be between 5cm and 30cm. The equipment list with prices is prepared below with the installation layout. Daily capacity is (8 hours) 8.000 pieces of standard hollow blocks / 550 m² paving blocks…
PRS 800 SEMI-AUTOMATIC MACHINE: The price of the campaign is prepared as a complete plant “turnkey project”. Except for product drying and curing rooms, there is no extra equipment needed in the plant area. For a plant of these features the recommended installation, curing, and stock area is a minimum of 3500 m2. There is no obligation for roofing. The prepared concrete floor should be a minimum of 1/3 of the plant area. The pieces of equipment specified in our campaign are as advisory and are stated by the sample installation layout. You can add or remove items from the list.
you can create your own optimal facility without being connected to the campaign with the help of the " create your own plant " button in 3 steps according to the request. For further information please contact your nearest customer representative.
PRS 800 Semi-Automatic Hollow Block Machine Details
TECHNICAL SPECIFICATIONS
| TECHNICAL SPECIFICATIONS | |||
| Mortar Hoppers And Capacity | Single Hopper /0.7 m³ | Upper Vibrator Motor Power | 0.75 kW x 2 Pieces opt |
| Control System | Operator Control | Hydraulic Motor Power | 11 kW |
| Production Capacity | 100-120 Pallets / Hour | Hydraulic Oil Tank Capacity | 350 L |
| Weight | 8.500 Kg | Hydraulic Pressure | 150 Bar |
| Machine Dimensions | 200 cm / 650 cm / 250 cm | Vibration Cooling Capacity | 22.000 Kcal |
| External Chassis Dimensions | 150 x 200 x 6 mm Closed Profile | Total Power Usage | 35 kW |
| Vibration Force | 42.500 Kg | Min - Max Product Height | 5-25 cm |
| Lower Vibrator Motor Power | 5,5 kWx 4 Pieces | Wooden Pallet Dimensions | 95 x 95 x 4 cm |
CAPACITY
| CAPACITY INFORMATION |
||
| PRODUCT TYPE | NUMBER OF PRODUCTS ON PALLET | DAILY PRODUCTION CAPACITY (8 HOURS) |
| Hollow Block 100 X 400 X 200 | 16 | 16.000 |
| Hollow Block 150 X 400 X 200 | 12 | 12.000 |
| Hollow Block 200 X 400 X 200 | 8 | 8.000 |
| Asmolen 250 X 400 X 200 | 6 | 6.000 |
 |
 |
 |
 |
| CAPACITY INFORMATION | ||
| PRODUCT TYPE | NUMBER OF PRODUCTS ON PALLET | DAILY PRODUCTION CAPACITY (8 HOURS) |
| Interlocking Paving Block | 20 | 550 m² |
| Rotary Paving Block | 20 | 550 m² |
| Rectangular Paving Block | 35 | 650 m² |
| Curbstone 150 x 700 x 300 | 2 | 2.000 Pieces |
 |
 |
 |
 |
