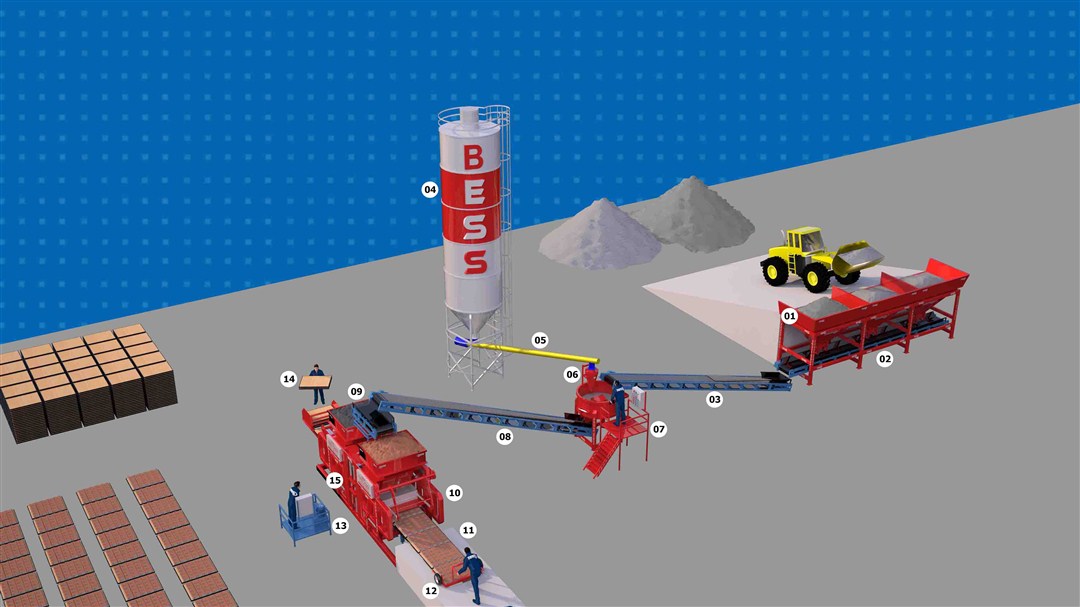

PRS 402 SEMI AUTOMATIC MACHINE; Semi Automatic System Is Made Like A Mortar Plant. Machine Is Designed To Work 24 Hours. It Has A Different Automation And Capacity System. Machine Is Very Fast And Has High Production Capacity. By Changing The Mould Machine Can Produce Any Types Of Concrete Paving BlocksHollow Blocks - Insulated BricksDifferent CurbstonesAsmolen And Chimney Blocks Which Height Must Be Between 5cm And 25 Cm. Equipment List With Prices, Prepared Related To The Installation Layout Is Given Below. Daily Capacity (8 Hours) 4.000 Pieces Concrete Hollow Blocks / 300 m² Paving Blocks

PRS 402 SEMI AUTOMATIC MACHINE; The Price Of The Campaign Is Prepared As Complete Plant “Turnkey Project”. Except Product Drying And Curing Rooms There Is No Extra Equipment Needed On The Plant Area. For A Plant Of The With These Features The Recommended Installation , Curing And Stock Area Is Minimum 2.500 m2. There Is No Obligation For Roofing. The Prepared Concrete Floor Should Be Minimum 1/3 Of The Plant Area. Equipments Specified In Our Campaign Are As Advisory And Are Stated By The Sample Installation Layout. You Can Add Or Remove Items From The List.

You Can Create Your Own Optimal Facility Without Being Connected To The Campaign With The Help Of The " Create Your Own Plant " Button In 3 Steps According To The Request.For Further Information Please Contact Your Nearest Customer Representative.


 Mortar Hoppers And Capacity  Double Hopper /0.5 m³  Upper Vibrator Motor Power  0.75 Kw x 2 Pieces
 Control System    Operator Control  Hydraulic Motor Power  5.5 Kw
 Production Capacity    100-120 Pallets / Hour  Hydraulic Oil Tank Capacity  350 L
 Weight  7.500 Kg  Hydarulic Pressure  150 Bar
 Machine Dimensions     200 cm / 750 cm / 250  cm  Vibration Cooling Capacity  22.000 Kcal
 External Chassis Dimensions  150 x 150 x 6 mm Closed Profile  Total Power Usage  18 Kw
 Vibration Force   36.500 Kg   Min - Max Product Height  5-25 cm
 Lower Vibrator Motor Power   5,5 Kw x 2 Pieces  Wooden Pallet Dimensions  50 x 110 x 4 cm
