PRS 1002 SEMI AUTOMATIC MACHINE; Semi Automatic System Is Made Like A Mortar Plant. Machine Is Designed To Work 24 Hours. It Has A Different Automatıon And Capacity System. Machine Is Very Fast And Has High Production Capacity. By Changing The Mould Machine Can Produce Any Type Of Concrete Paving Blocks - Hollow Blocks - Insulated Bricks – Different Curbstones – Asmolen And Chimney Blocks Which Height Must Be Between 5cm And 25 Cm. Equipment List With Prices, Prepared Related To The Installation Layout Is Given Below. Daily Capacity (8 Hours) 10.000 Pieces Concrete Hollow Blocks / 700 m² Paving Blocks…

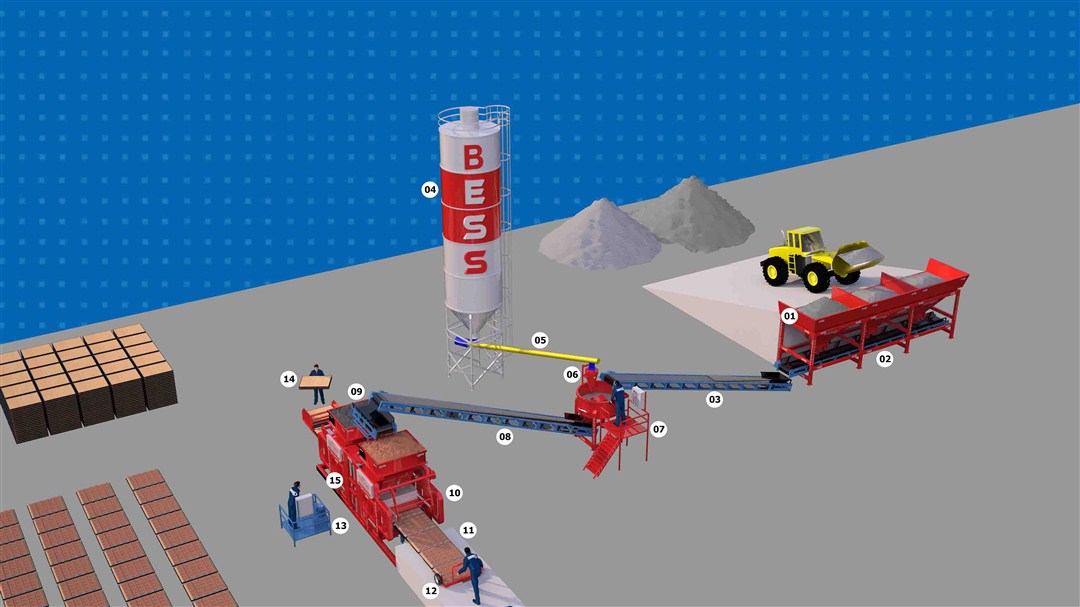

PRS 1002 SEMI AUTOMATIC MACHINE; The Price Of The Campaign Is Prepared As Complete Plant “Turnkey Project”. Except Product Drying And Curing Rooms There Is No Extra Equipment Needed On The Plant Area. For A Plant Of The With These Features The Recommended Installation , Curing And Stock Area Is Minimum 4000 m2. There Is No Obligation For Roofing. The Prepared Concrete Floor Should Be Minimum 1/3 Of The Plant Area. Equipments Specified In Our Campaign Are As Advisory And Are Stated By The Sample Installation Layout. You Can Add Or Remove Items From The List.
You Can Create Your Own Optimal Facility Without Being Connected To The Campaign With The Help Of The " Create Your Own Plant " Button In 3 Steps According To The Request.For Further Information Please Contact Your Nearest Customer Representative.
TECHNICAL SPECIFICATIONS
| TECHNICAL SPECIFICATIONS | |||
| Mortar Hoppers And Capacity | Double Hopper /1 m³ | Upper Vibrator Motor Power | 0.75 Kw x 2 Pieces |
| Control System | Operator Control | Hydraulic Motor Power | 11 Kw |
| Production Capacity | 100-120 Pallets / Hour | Hydraulic Oil Tank Capacity | 350 L |
| Weight | 10.500 Kg | Hydarulic Pressure | 150Bar |
| Machine Dimensions | 200 cm /900 cm / 250 cm | Vibration Cooling Capacity | 22.000 Kcal |
| External Chassis Dimensions | 150 x 200 x 6 mm Closed Profile | Total Power Usage | 35 Kw |
| Vibration Force | 42.500 Kg | Min - Max Product Height | 5-25 cm |
| Lower Vibrator Motor Power | 5,5 Kw x 4 Pieces | Wooden Pallet Dimensions | 95 x 110 x 4 cm |
CAPACITY
| CAPACITY INFORMATION |
||
| PRODUCT TYPE | NUMBER OF PRODUCTS ON PALLET | DAILY PRODUCTION CAPACITY (8 HOURS) |
| Hollow Block 100 X 400 X 200 | 18 | 18.000 |
| Hollow Block 150 X 400 X 200 | 12 | 12.000 |
| Hollow Block 200 X 400 X 200 | 10 | 10.000 |
| Asmolen 250 X 400 X 200 | 8 | 8.000 |
 |
 |
 |
 |
| CAPACITY INFORMATION | ||
| PRODUCT TYPE | NUMBER OF PRODUCTS ON PALLET | DAILY PRODUCTION CAPACITY (8 HOURS) |
| Interlocking Paving Block | 25 | 700 m² |
| Rotary Paving Block | 25 | 700 m² |
| Rectangular Paving Block | 40 | 800 m² |
| Curbstone 150 x 700 x 300 | 3 | 3.000 Pieces |
 |
 |
 |
 |
